12dBi Patch Antenna 2.4GHz
Reference: Mikrotik
Stok Terbatas - Konfirmasi sebelum Pesan

12dBi Patch Antenna 2.4GHz

Reference: Mikrotik
Stok Terbatas - Konfirmasi sebelum Pesan
Konfirmasi Stok dan Jadwal / Waktu Pengiriman
Rp790.000,00

12dBi Patch Antenna 2.4GHz

Antenna Indoor flat panel 12 dbi 2,4 GHz. Cocok untuk aplikasi hotspot indoor. Termasuk kabel jumper N-Male to N-male 1 meter.



12dBi Patch Antenna 2.4GHz

Electrical Specifications

  • Frequency     2400-2500 MHz
  • Gain ( dBi )     12 dBi
  • Polarization     Vertical or Horizontal

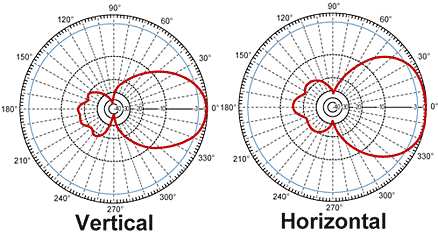

  • Vertical Beamwidth     34°
  • Horizontal Beamwidth     65°
  • Max. Input Power     200W
  • Impedance     50 Ohms
  • VSWR     1.5:1
  • Lightning Protection     DC Ground

Mechanical Specifications

  • Output Connector     Integral N-Female
  • Mounting     1" (25.4 mm) to 1.7" (43.2 mm) dia. masts
  • Vertical Tilt     0-30° Up or Down
  • Radome     UV-Inhibited ABS
  • Operating Temperature     -40° C to to 55° C
  • Dimensions 102 x 102 x 102 mm
  • Weight - Antenna     0.6 lbs. (0.27 Kg)
  • Weight - Mount     0.4 lbs. (0.18 Kg)
  • Rated Wind Velocity     150MPH/h (241Km/h)
  • RoHS Compliant     Yes
